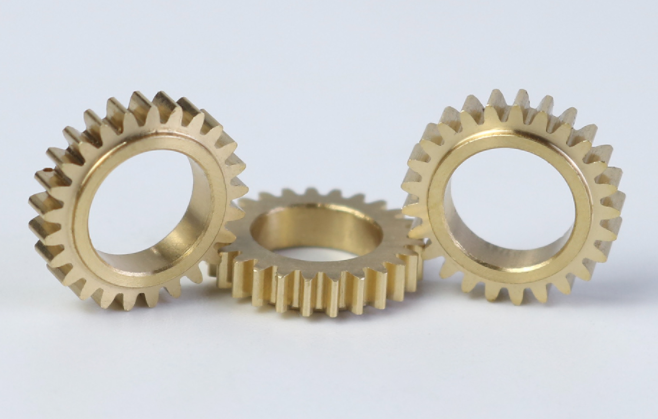

Professional CNC Turning of Brass Gears: Precision Transmission, Long-Lasting Durability

In the field of high-precision industrial transmission, gears are not only critical components for transmitting power, but their material selection, manufacturing precision, and long-term reliability directly impact the performance and lifespan of the entire system. Brass, with its excellent machinability, wear resistance, corrosion resistance, and self-lubricating properties, is an ideal material for manufacturing precision gears. However, producing brass gears that combine exceptional dimensional stability, superior surface finish, and long-term quiet operation requires a mature, integrated process of precision manufacturing and post-processing.

We specialize in providing customized CNC turned brass gear solutions for global industrial clients. From material science to precision machining, and professional surface treatment, we possess a complete in-house process ensuring every gear meets the strictest industrial standards, fulfilling your demanding requirements in automation equipment, precision instruments, valve systems, high-end consumer products, and other fields.

Core Advantages: Integration of Material Science, Precision Machining, and Performance Optimization
We understand that a superior gear is the result of multiple factors working together. We don't just "machine"; we provide a full-process performance solution from design consultation to finished product delivery.

• Expertise in Materials: We primarily use free-machining brass (e.g., C36000), which offers industry-leading machinability while maintaining good mechanical properties, enabling extremely high dimensional accuracy and surface finish, reducing post-processing needs.
• Precision CNC Turning and Forming: Utilizing multi-axis turning-milling centers, we complete gear tooth profiles, inner holes, end faces, and various complex features in a single setup, maximizing concentricity, perpendicularity, and other key geometric tolerances.
• Integrated Surface Treatment Solutions: Depending on the gear's application (e.g., requiring wear resistance, tarnish prevention, reduced friction coefficient, or specific aesthetics), we offer professional post-processing such as passivation, nickel plating, chrome plating, or Teflon (PTFE) coating to enhance functionality.
• Rigorous Quality Control: From raw material receipt to finished product shipment, every step has traceable inspection records. We check not only dimensions but also focus on tooth profile accuracy, surface integrity, and final performance.

Key Insight: Our production data indicates that over 95% of transmission noise or premature wear issues can be traced back to gear tooth profile errors, poor surface roughness, or improper material heat treatment. Therefore, we focus our monitoring on these areas.

Our Integrated Manufacturing Process Flow
We adopt a systematic approach to ensure every gear meets the highest standards.

2.1 Precision CNC Turning and Tooth Forming: The Source of Accuracy

• Process Strategy: Using precision diamond or ultra-fine grain carbide tools specifically designed for brass, combined with optimized cutting parameters, ensures efficient chip evacuation and excellent surface quality (Ra values up to 0.4-0.8 μm), laying the foundation for low-noise operation.
• Parameter Reference (using C36000 as an example):

Finish Turning: Cutting speed 150-250 m/min, feed rate 0.05-0.15 mm/rev, depth of cut 0.1-0.3 mm.

Tooth Forming: Utilizing high-precision gear hobbing or form milling, strictly controlling tooth profile and pitch accumulation error.

• Key Point: Parts are thoroughly cleaned immediately after machining to remove all cutting fluid and brass chips, preventing corrosion or affecting subsequent processing.

2.2 Deburring and Edge Treatment: Ensuring Safety and Smooth Operation

Perform precise manual or automated deburring and chamfering (e.g., C0.1-C0.3) on all tooth tips and edges, eliminating stress concentration points, ensuring smooth gear meshing, and improving handling safety.

2.3 Surface Treatment (Optional): Enhancing Performance and Lifespan

• Passivation: Forms a transparent protective oxide film, enhancing the gear's corrosion resistance and preventing natural tarnishing. It is the standard choice for maintaining the brass's original color and providing basic protection.
• Electroplating:

Nickel Plating: Provides high hardness, excellent wear and corrosion resistance, with a silvery-white appearance.

Chrome Plating: Provides extremely high surface hardness, wear resistance, and a low friction coefficient, with a bright appearance.

Electroless Nickel Plating: Offers uniform coating coverage, even on complex tooth profiles, providing good corrosion and wear resistance.

• Teflon (PTFE) Impregnated Coating: Provides an extremely low friction coefficient, excellent dry lubrication, and anti-adhesion properties, particularly suitable for maintenance-free or quiet operation applications.

2.4 Quality Inspection and Performance Verification

• Dimensional and Geometric Inspection: Using Coordinate Measuring Machines (CMM) and gear measuring instruments to inspect all critical dimensions, tooth profiles, and tooth alignment errors.
• Surface Inspection: Evaluating machining quality via microscopes and surface roughness testers.
• Functional Testing: Paired meshing tests can be conducted upon request to check operational smoothness and noise levels.

Typical Application Areas

• Industrial Automation & Robotics: Gears in reducers, transmission modules, precision positioning systems.
• Valves & Fluid Control: Gear transmission components in regulating valves, flow meters.
• Medical & Laboratory Equipment: Precision transmission parts in diagnostic instruments, infusion pumps (requiring compliance with relevant cleanliness standards).
• High-End Consumer Goods & Musical Instruments: Gears in high-end watch movements, camera focusing mechanisms, instrument tuning knobs.
• Electrical & Electronic Equipment: Gears in small servo mechanisms, high-quality locks.

Cost and Quality Control Considerations
Primary Cost Drivers:

• Gear complexity: Module, number of teeth, pressure angle, need for special tooth forms (e.g., helical, worm).
• Accuracy Grade: Requirements per DIN, AGMA, or JIS standards (e.g., DIN Grade 6 vs. 8).
• Material & Post-processing: Special brass alloys are more costly; the type and coverage of plating/coating affect final cost.
• Certification & Traceability: Documentation and testing required to meet industry-specific standards (e.g., automotive, medical).

Core Quality Checkpoints:

• Raw Material: Material Certification (Mill Certificate).
• Post-Turning: Full dimensional inspection, key tooth profile parameter checks.
• Post-Treatment: Coating thickness test (X-ray fluorescence), corrosion resistance test (e.g., salt spray test), adhesion test.
• Final Shipping: Visual inspection, cleanliness, and packaging check.

Frequently Asked Questions (FAQ)
Q1: What are the advantages and limitations of brass gears compared to steel gears?
A1: Advantages: Easier to machine, cost-effective; excellent corrosion resistance; good self-lubrication, leading to lower operating noise; non-magnetic; electrically conductive. Limitations: Strength and hardness are lower than steel, making them unsuitable for extremely high load or impact applications; potential for wear under prolonged heavy loads.

Q2: How do I choose the right surface treatment for my application?
A2: It depends on your priority needs:

• Basic corrosion protection, maintaining original color: Choose Passivation.
• High wear & corrosion resistance, silvery-white appearance: Choose Nickel Plating.
• Maximum wear resistance, low friction, bright appearance: Choose Chrome Plating.
• Require extremely low friction, dry running, or anti-adhesion: Consider Teflon Coating.

Q3: What typical tolerance ranges can you guarantee?
A3: For standard C36000 brass gears:

• Diameter Dimensional Tolerance: Can achieve ±0.01 mm.
• Tooth Profile Error: Can typically be controlled within DIN Grades 7-9, depending on module and accuracy grade.
• Concentricity/Runout Tolerance: Can be guaranteed within 0.02 mm.
  Higher precision requirements should be specified during quotation.

Our Machining and Processing Capabilities

• Precision Forming: Multi-axis CNC turning, turning-milling composite machining, precision gear hobbing/milling.
• Surface Treatment:

Mechanical Processing: Precision deburring, polishing.

Chemical/Electrochemical Processing: Passivation, nickel plating, chrome plating, electroless nickel plating.

Special Coatings: Teflon (PTFE) impregnated coating.

• Other Services: Laser marking (for part traceability), ultrasonic cleaning.

Common Materials
Brass alloys (e.g., C36000) can be recommended based on mechanical performance requirements.

Typical Accuracy Reference

• CNC Turning Dimensional Tolerance: ±0.01mm ~ ±0.05mm
• Tooth Profile Accuracy: Up to DIN Grade 7 (depending on gear specifications)
• Surface Roughness: Ra 0.4μm ~ 1.6μm (depending on process)

Certification
ISO 9001:2015 Quality Management System Certification.

Disclaimer: The process parameters and performance described herein are based on production experience with standard C36000 brass under controlled conditions. Optimal methods and parameters may vary depending on specific part geometry, equipment status, material batch, and final application requirements. Comprehensive prototyping is strongly recommended prior to volume production to validate the suitability of the process chain for your specific product. All performance data should be confirmed based on actual testing.
